Excavator Cylinders, Medium Pressure
Product Description
This kind of durable medium-pressure cylinder is designed for compact excavator with max. pressure of 280kgf/cm^2 and operating temperature of -20℃～100 ℃ (for cold area: -40℃～90℃)

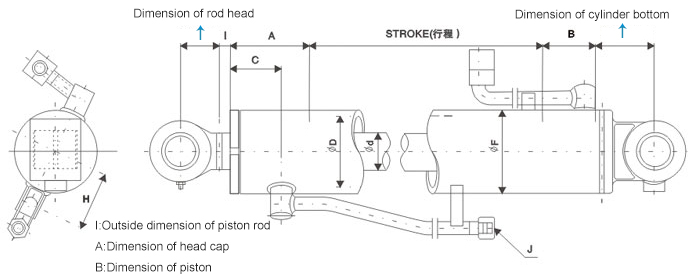

D
d
F
H
A
C
B
I
J
trip(biggest）
No buffer
A buffer
70
45、50
86
83
80
125
75
70
25
M26×1.5
730
75
45、50
93
86
85
130
80
75
25
M26×1.5
900
80
45、50
99
89
85
130
80
80
25
M26×1.5
900
85
50、55
105
92
85
130
80
85
25
M26×1.5
900
90
55
111
95
85
130
80
90
25
M26×1.5
1150
60
95
135
95
60、65
117
98
95
135
85
95
25
M26×1.5 M30×2
1150
100
60、65
124
102
95
135
85
95
25
M26×1.5 M30×2
1150
105
65、70
131
105
95
135
85
95
25
M26×1.5 M30×2
1150
110
65、70
136
108
95
135
85
100
25
M26×1.5 M30×2
1350
115
65、70
142
111
95
135
90
105
25
M26×1.5 M30×2
1350
120
70、75、80
148
114
95
135
90
110
25
M26×1.5 M30×2
1350
125
70、75、80
155
117
95
135
90
120
25
M26×1.5 M30×2
1350
(1) External diameter E and piston rod diameter D will not comply with the above standard due to different applications.
